Duo bloc

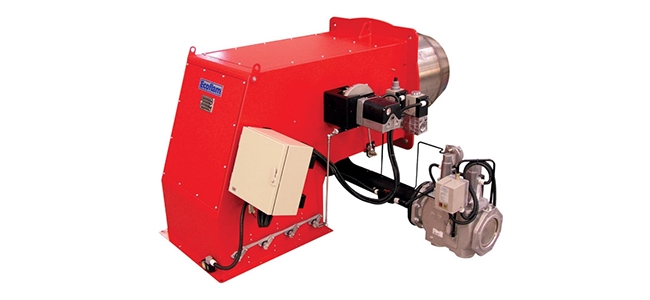

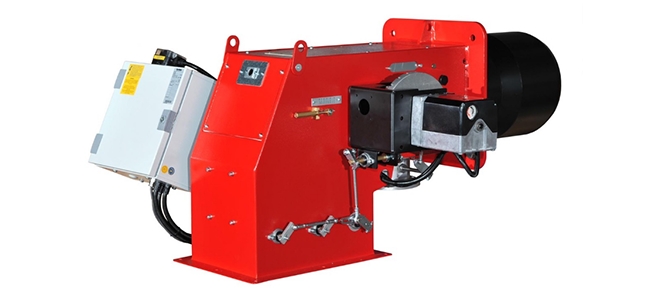

TS Range:

Main features:

• Ecoflam Duoblock burners (TS = Separate Head) have been developed to complete its offer for commercial and industrial combustion solutions;
• Duoblock burners can run with preheated combustion air and save a considerable amount of energy that can be recovered from the hot flue gases by using a heat exchanger in the fue gas system (maximum air temperature 200° C);
• Construction layout and main features of the duoblock range match the monoblock burners and allow to use the same components and set up tools;
• Burners can be supplied in mechanical progressive modulating operation with PID controller or with electronic compound regulation (BMS) that support also inverter system for speed control and O2 Trim control;
• All TS models feature easy maintenance, access to the combustion head from the housing top cover. Burners can be assembled with air duct connection in different layouts;
• Duoblock burners are suitable for all types of installation and can utilise existing ventilators and overcome high resistance in the heat exchanger or combustion chamber or simply fulfil customers request or industrial application requirements.

The TS Range is composed of the following elements.
• Combustion head.
• Air system block.
• Separate ventilator.
• Derivative panel for electrical connections.
(standard configuration)
• Control panel assembled on the burner or remote
switch cabinet (option)
• Gas train block.

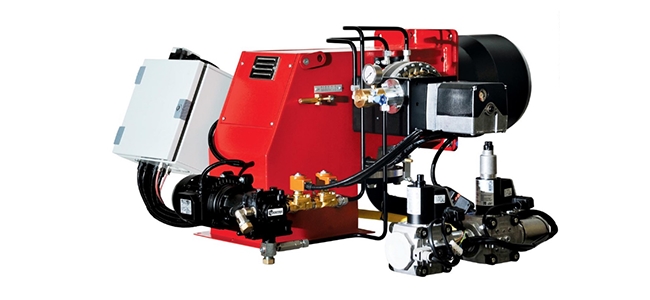

• Pump motor element. (for oil burners)
• Preheating pump station .(for heavy oil burners)
